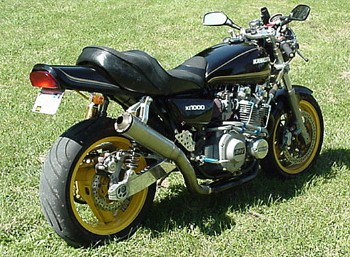

'78 KZ1000A2A Superbike (Streetfighter)
Main Original Pages [ Page-1]
[Page-2] [Page-3]
[Page-4]
Soon to Come... Totally Re-done!
In Sept. 1997 I started building this bike from a bare frame.
The frame is a '73 KZ900 (Z1) with many added braces
The paint job is '78 KZ1000 A2-A (America Only)
The wheels are '92 ZX-11
The swing arm is '91 ZR750 Zephyr
The front end is '90 ZX-7
 |
 |
The motor WAS is a '76 KZ900 bored to 1015cc 410 lift 296 duration Web cams with matching APE valve springs 10.25:1 compression APE piston kit Falicon welded and balanced KZ900 crank R&D back-cut tranny MRE lock-up clutch |

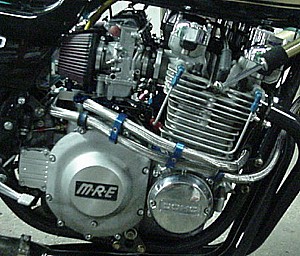

The motor NOW is a 1200cc 10.25 comp. Carolina Big block with JE Pistons KZ1100A Head Ported for Big Street Torque 1.5mm over intake 1mm over exhaust stainless valves 425 lift 269 duration Web Cams same crank same tranny Dyna 2000 ignition Custom top oiling system |
I went to the track for the first time,with the new engine, just for an excuse to go fast. The bike did a torque wheelie full-up about mid track (had to let off) at about 100mph on one of the passes! The best run of the night was 10.52 @ 134 mph (the wheelie run was 10.80 @ 131 mph). It was pretty hard to keep the front end down. I will have some new numbers after this weekend as I will be installing a set of struts and wheely-bars for the bikes next runs at IRP (Indianapolis Raceway Park). The extra parts are going to be used for the track ONLY, I would never get rid of the shocks for the street use.
OK... you waited long enough the bike ran a 10.21 @ 136mph . I am VERY confident of 9's , but I will need to wait until next year to find out. Running the bars meant a whole new launch . I made 5 runs and only two with the proper retard on the ignition so I am sure with a few more runs under my belt we could see 9.99 or better.
NEW MOTOR TO BE ADDED!!!
YES!!! 1200cc BIG BLOCK with JE Pistons and a J-Model head.
Custom top oiler system, billet clutch basket. SEE UPDATED PICTURES
GULP!

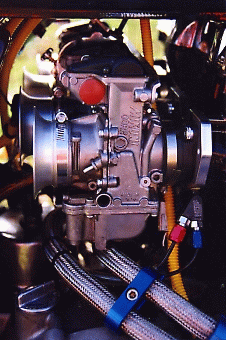

36mm Mikuni RS flatslide carbs
NOS fogger system
NEW!!!!!
Now you can get more info on the custom Kawasaki modifications. All you need to do is click on the part you want more info on. IT'S THAT SIMPLE!
>>>>>>>>>CLICK HERE TO CLICK THERE!!!<<<<<<<<<<
MORE pictures
